Table Saw - 900 W - 4,800 rpm

Cut wooden boards in seconds with the powerful table saw

The table saw C-SAW210N from MSW, the experts for high-quality power tools, is designed for safe, uncomplicated cutting of wood materials. The electric table saw has a sawblade with a diameter of 210 mm and is the perfect choice for professional carpenters as well as for hobby woodworkers in the home workshop.

Precise cuts with the table saw from MSW's professional tools collection

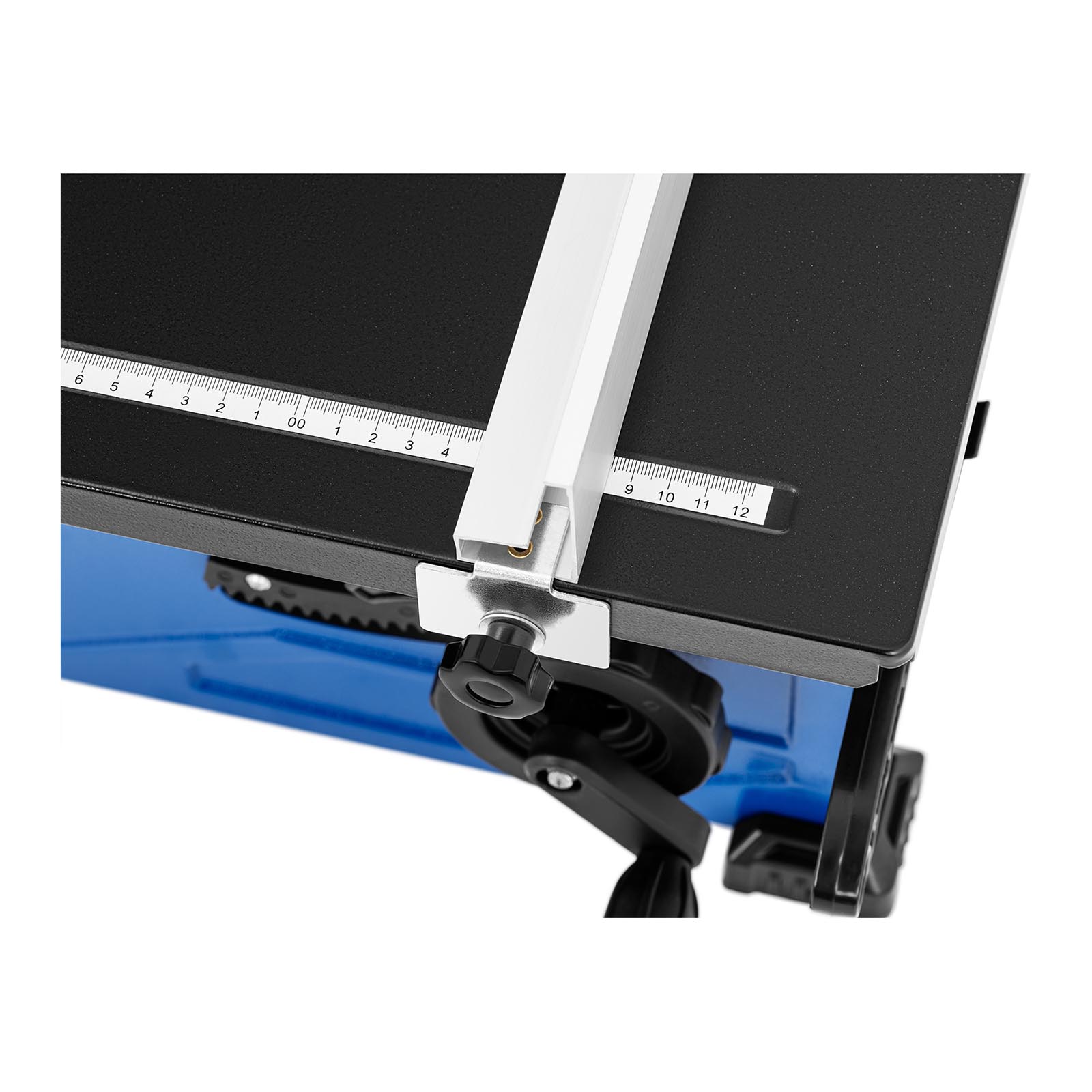

The powerful 900 W motor generates a speed of 4,800 rpm and thus cuts through up to 45 mm-thick wooden boards precisely and effortlessly. The infinitely height-adjustable saw blade on the 52.5 x 44 cm worktable is easy to adjust using the easy-to-read scale. Precise parallel cuts can be achieved with the help of the parallel rail, which can be adjusted to the millimetre. The circular saw bench also has a large range of angle and cutting depth adjustment for the replaceable saw blade: The vertical cutting axis is adjustable for clean mitre cuts from the starting position 0 degrees up to a maximum of 45 degrees. The cutting depth is up to 27 mm at 45° and up to 45 mm at 90°. The 2.6 mm-thick saw blade is equipped with a protective cover to ensure a high standard of occupational safety. A sliding guard prevents serious injuries while the protected start and stop button prevents unintentional starting of the saw. If the work load is too high, the overload protection interrupts the power supply and automatically switches off the table top circular saw. Follow the directions in the instruction manual to reset the protective circuit. The four non-slip rubber feet guarantee additional safety by ensuring stability while also protecting the surface from scratches.

• Model

  C-SAW210N

• Output

  900 W

• Max. cutting depth at 90°

  45 mm

• Diameter, mounting hole

  30 mm

• Cutting width

  20 - 130 mm

• Work mode

  S1, S6

• Sound pressure level LpA / (uncertainty K)

  92.4 dB (A)

• Weight

  11.25 kg

• Dimensions (LxWxH)

  58 x 44 x 36 cm

• Shipping weight

  13.05 kg

• Condition

  New

• Max. power consumption

  1,200 W (S6 40 %)

• Max. cutting depth at 45°

  27 mm

• Thickness, saw blade

  2.6 mm

• Thickness, splitting wedge

  2.2 mm

• Dimensions, work table (LxW)

  52.5 x 44 cm

• Length, power cable

  2 m

• Shipping dimensions (LxWxH)

  56.00 x 48.00 x 39.00 cm

• Weight

  11.05 kg

• Delivery package

  Table saw C-SAW210N
  Instruction manual

• Voltage / Frequency

  230 V / 50 Hz

• Max. number of revolutions

  4,800 rpm

• Saw blade diameter

  210 mm

• Angle of inclination, saw blade

  45 - 90°

• Protection class

  II

• Sound power level LWA / (uncertainty K)

  105.4 dB (A)

• Dimensions (LxWxH)

  58.00 x 44.00 x 36.00 cm

• Shipping weight

  13.50 kg

• Shipping dimensions (LxWxH)

  56.2 x 48 x 39.2 cm

• Technical - manual



  PDF Download
